HRC 45 Unequal Helix Square End Mills 4 Flutes
Model : YDS10UE4A
Feature
- Wide Application: Suitable for general-purpose machining of materials below HRC 45.
- Angle: 35°/38°、38°/41°、41°/43°、43°/45°
- Complete Lineup: Covers square, ball nose, corner radius, and specialized cutter designs.
- Extended Tool Life: Features AlTiN (AT) and TiAlN (SF) coatings for enhanced durability.
- Optimized Performance: Offered in various flute numbers and high-grade materials for smooth machining.
Description

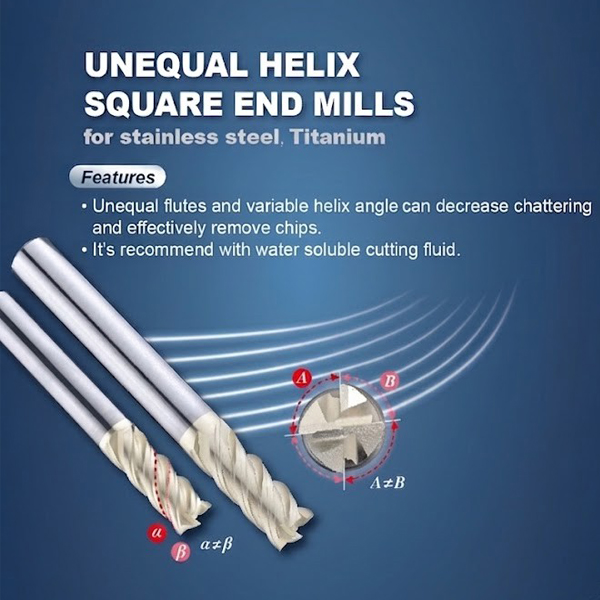

The variable pitch design minimizes cutting vibration and enhances surface finish quality.
Key Advantages:
-
Vibration Reduction: Effectively suppresses chatter during machining.
-
Extended Tool Life: Reduces tool wear for longer operating life.
-
Rapid Chip Evacuation: Facilitates fast chip removal and prevents chip adhesion.
-
Ideal for Difficult-to-Machine Materials: Highly suitable for stainless steel, alloy steel, and other tough alloys.
Specification
| Type No. | Diameter | Flute Length | Overall Length | Shank Dia |
|---|---|---|---|---|
| 4 Flutes | D | H | L | D2 |
| UE4A06050-6.0 | 6 | 16 | 50 | 6 |
| UE4A08060-7.0 | 7 | 18 | 60 | 8 |
| UE4A08060-8.0 | 8 | 20 | 60 | 8 |
| UE4A10075-9.0 | 9 | 23 | 75 | 10 |
| UE4A10075-10.0 | 10 | 25 | 75 | 10 |
| UE4A12075-12.0 | 12 | 30 | 75 | 12 |
| UE4A16100-14.0 | 14 | 35 | 100 | 16 |
| UE4A16100-15.0 | 15 | 38 | 100 | 16 |
| UE4A16100-16.0 | 16 | 40 | 100 | 16 |
| UE4A20100-18.0 | 18 | 40 | 100 | 20 |
| UE4A20100-20.0 | 20 | 45 | 100 | 20 |
