Welding Carbide Standard Precision End Mill

Welding Carbide Standard Precision End Mill

  • Series: Hybrid Iron Carbide Tools

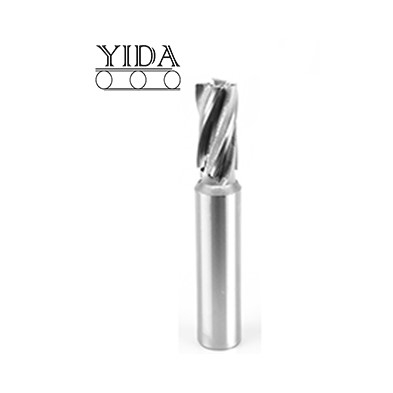

  • Name: Welding Carbide Standard Precision End Mill
  • Model: YE

The Hybrid Iron Carbide Tools series more focus on the welding carbide tools such as welding carbide side milling cutter, welding face milling cutter, welding carbide T-Slot, welding carbide chamfer end mill, welding dovetail milling cutter, welding shell end mill, and welding carbide standard precision end mill.
The material of cutters in this series are also made of Tungsten carbide; however, the cutter has been processed for welding by the technique of traditional welding to be the final product. In contrast to the other series, the welding cutters have an advantage in price.

Type No. Diameter Flute Length Flute NO Overall Length Shank Dia
D H T L D2
YE163216 16 32 4 100 16
YE173216 17 32 4 100 16
YE183520 18 35 4 105 20
YE193820 19 38 4 110 20
YE204020 20 40 4 110 20
YE214020 21 40 4 110 20
YE224020 22 40 4 110 20
YE235020 23 50 4 130 20
YE245020 24 50 4 130 20
YE255025 25 50 4 130 25
YE265025 26 50 4 130 25
YE275025 27 50 4 130 25
YE285025 28 50 4 130 25
YE295032 29 50 4 130 32
YE305032 30 50 4 130 32
YE315032 31 50 4 130 32
YE325032 32 50 4 130 32
YE335032 33 50 4 140 32
YE345032 34 50 4 140 32
YE355032 35 50 4 140 32
YE365032 36 50 4 140 32
YE385032 38 50 4 140 32
YE406332 40 63 4 150 32
YE426332 42 63 4 165 32
YE456332 45 63 4 165 32
YE486332 48 63 4 165 32
YE506332 50 63 4 165 32
